Crawl Space Repair Photo Album: Crawlspace Encapsulation in Vienna, MD
A homeowner in Vienna, MD, was having their HVAC unit serviced when the technician advised them that he noticed condensation on the ductwork in the crawlspace. Knowing this could turn into a bigger issue, the homeowner did some research and decided to contact the experts at DryZone to schedule a free inspection. Our System Design Specialist, Jamie, conducted a thorough inspection and found that the humidity in the crawlspace was over 65%, well above the recommended 55% benchmark.

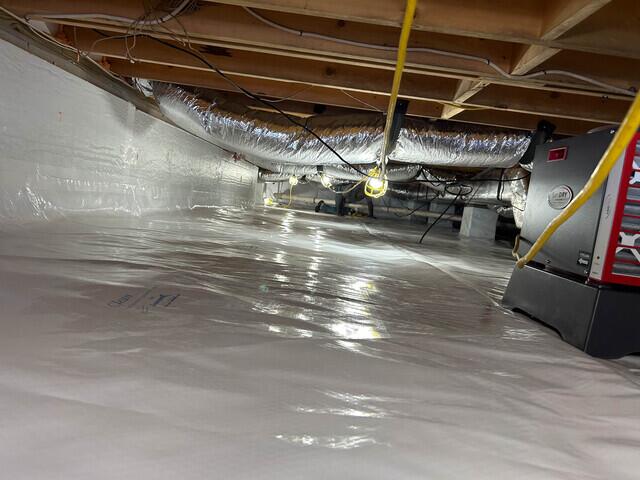

The major components of this crawlspace encapsulation project included CleanSpace and a SaniDry Sedona. The SaniDry Sedona has an impressive 100-pint-per-day capacity and moves over 300 cubic feet of dry air per minute through your crawlspace or basement. CleanSpace is a heavy 20-mil-thick liner manufactured in seven layers a blend of high-density polyethylene for durability, low-density polyethylene for flexibility, and polyester cord reinforcement for added tear resistance.
There's no doubt that this Vienna, MD, homeowner now has a peace of mind knowing their crawlspace is protected. DryZone is proud to have helped protect another home on Delmarva.

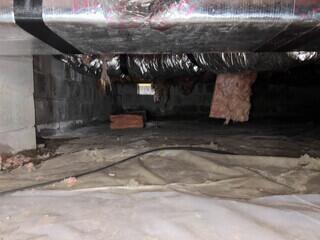

Existing Liner
The existing liner will be removed from the crawlspace along with the hanging insulation.

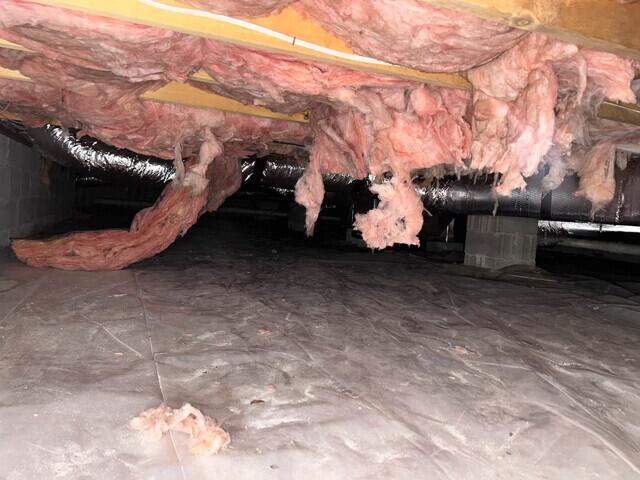

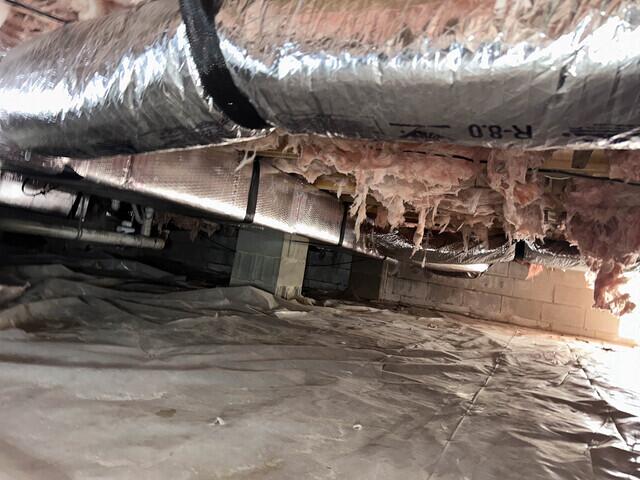

Hanging Insulation
The hanging insulation will be removed from the crawlspace.
Existing Liner
The existing liner will be removed from the crawlspace.

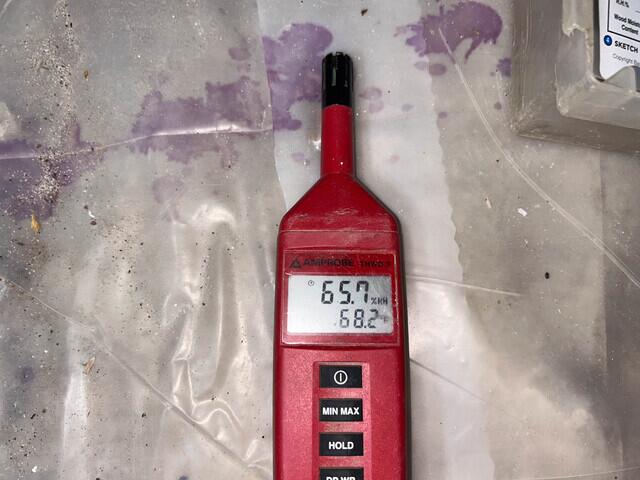

Humidity
The humidity in this crawlspace was over 65%, well above the recommended 55% benchmark.

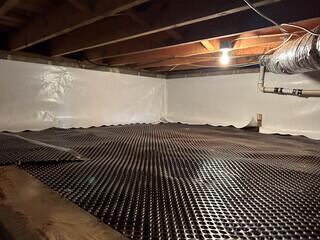

DrainageMatting
DrainageMatting helps create a drainage space beneath the CleanSpace, allowing water to flow to the SmartSump.

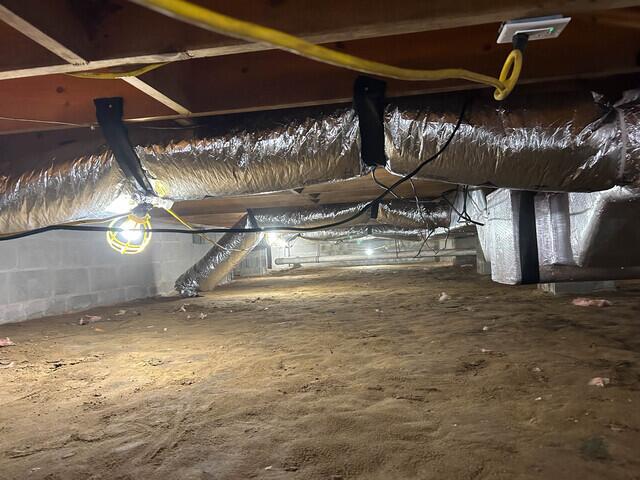

Regrade
Once the existing liner is removed the dirt will be regraded.

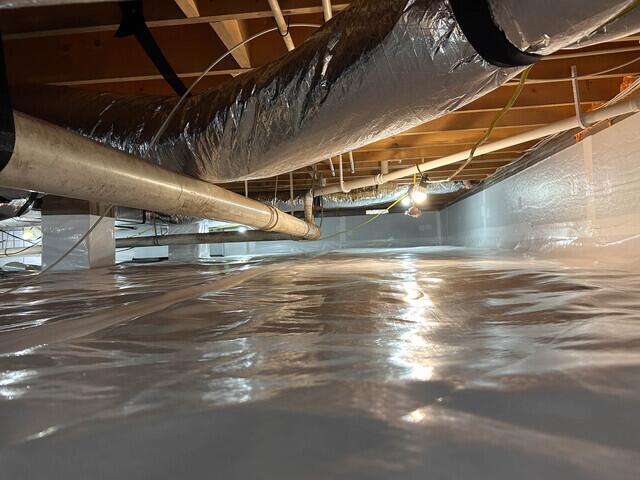

CleanSpace
CleanSpace helps to create an attractive, bright, and tough crawlspace.
CleanSpace
CleanSpace is a heavy-duty, 20-mil-thick liner manufactured in seven layers. It's made from a blend of high-density polyethylene for puncture resistance, low-density polyethylene for flexibility, and polyester cord reinforcement for superior tear resistance.
